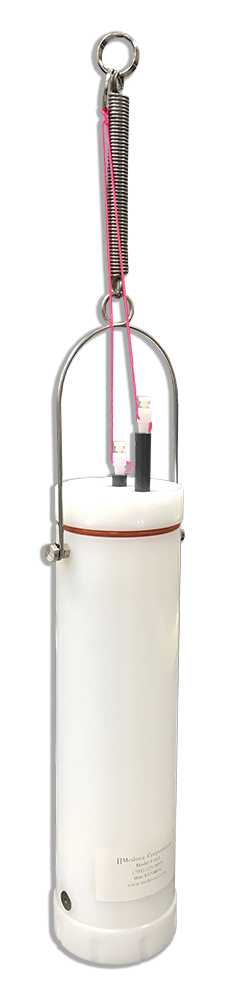

Water Sample Collection System, 2000 mL
Ultra-high-molecular-weight polyethylene (UHMW), PVC, and stainless steel hardware.
• Rope attachment point
• Spring action opener
• Seated plugs
• Main body & lid (UHMW)
• Isolated stainless steel weighted base
Main Body Including Lid: 17.0” H, 4.5” Dia.
Internal Sample Containment: 10.75” H, 4.0 Dia.
Discreet Sample Deployment
Insert seated plugs and lower to desired depth. To open the sampler, give the attachment rope a good tug to engage the spring action. The seated plugs will pop out and sampling will commence.
Composite Sample Deployment
From surface: Remove seated plugs and lower through water column.
From given point in the water column: Deploy as if a discreet sample. Once at the desired starting depth, open sampler and then begin to lower through water column.
